Continuous-Time PGA LiDAR Deskewing

This experiment recovers continuous ego-motion from a motion-distorted 3-D scan using dual projective geometric algebra \(Cl(3,0,1)\). Planes are 1-vectors, lines are 2-vector meets, and Euclidean points are 3-vectors. Acquisition time remains attached to each return as the sampling identity for the learned motor field.

Experiment

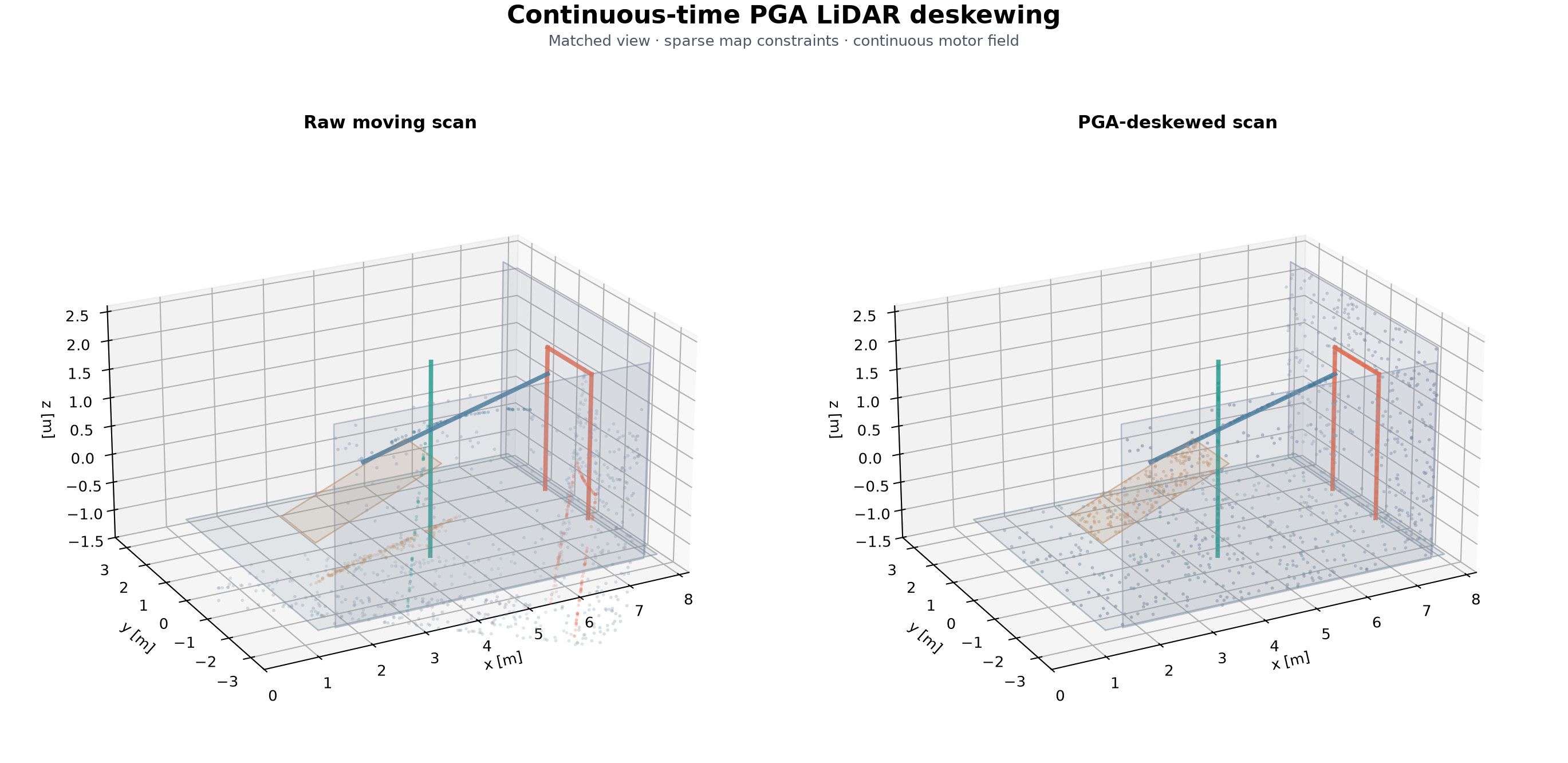

A static synthetic scene is scanned while the sensor follows an independently defined analytic translating and rotating trajectory. The scan has 1,160 timed returns; the optimizer uses 183 selected returns, with 104 known point-plane correspondences, 60 known point-line correspondences, and 24 surveyed point anchors. Some selected returns carry more than one constraint. The anchor positions come from simulation truth, but the analytic trajectory and all unselected world points are used only for synthesis and evaluation.

The estimator is a normalized Gaussian-RBF PGA motor field, deliberately different from the analytic matrix trajectory used to generate the scan. Evaluation includes a second independently sampled 720-return scan and a dense 241-time pose comparison, with no validation-time optimization.

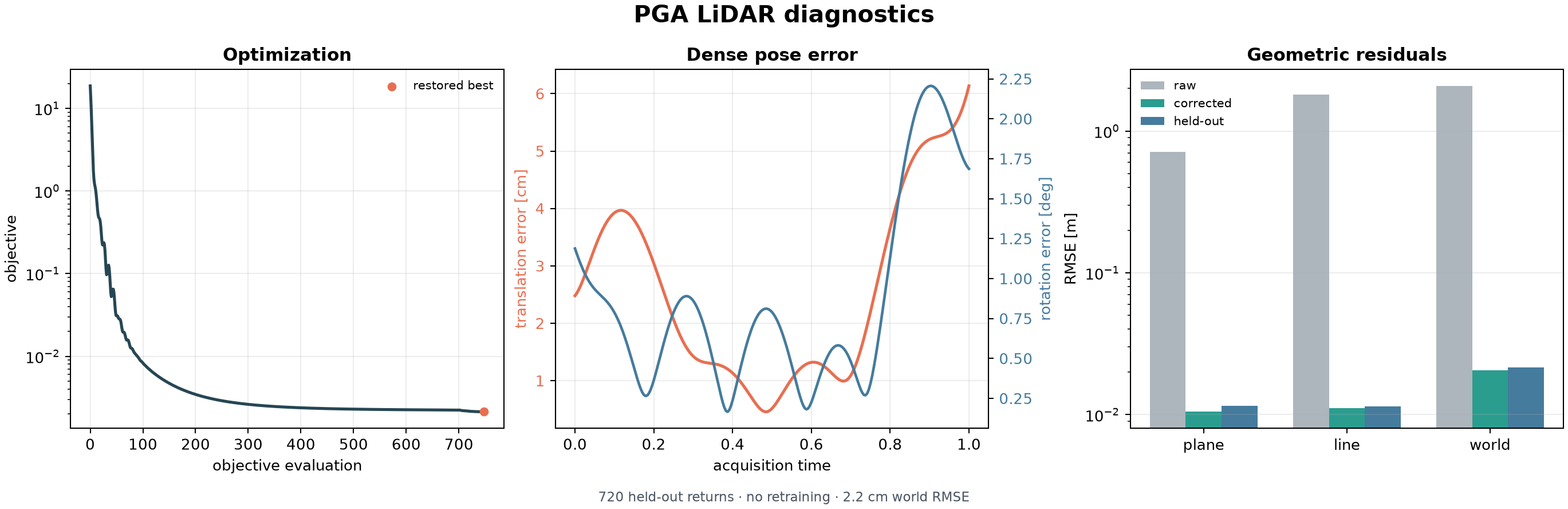

Quantity	Raw	Corrected / recovered
Primary plane RMSE	0.713 m	0.0105 m
Primary line RMSE	1.809 m	0.0111 m
Primary world RMSE	2.082 m	0.0206 m
Held-out plane RMSE	0.735 m	0.0115 m
Held-out line RMSE	1.801 m	0.0114 m
Held-out world RMSE	2.127 m	0.0216 m
Dense translation RMSE	—	3.03 cm
Dense rotation RMSE	—	1.04°
Indexed inverse round-trip max	—	\(1.2\times10^{-14}\)

The surveyed anchors help resolve pose directions weakly constrained by the map: the late sweep observes planes but no lines. Anchor-free full-scale fits can reduce point-plane and point-line residuals while missing the dense trajectory. The analytic trajectory and simulation oracle are not supplied to the optimization objective.

Recorded default run summary:

setup         1160 timed returns | 183 selected returns | 10 RBF controls | seed 29
[   0/700] loss=1.8722e+01 plane=0.7011 line=1.7937
[ 700/700] loss=2.2323e-03 plane=0.0126 line=0.0105 anchor=0.0085
[L-BFGS/45] loss=2.1256e-03
primary      plane 0.7126→0.0105 m | line 1.8088→0.0111 m | world 2.0821→0.0206 m
validation   720 held-out returns | plane 0.0115 m | line 0.0114 m | world 0.0216 m
numerical    pose 3.03 cm / 1.036° | inverse 1.2e-14
optimization best 2.126e-03 at 747 | final 2.126e-03 | 183 selected returns

Run

uv run --group viz research/transformation_fields/examples/pga_lidar_deskewing.py

Add --live to display the evolving deskewed scan. Saved artifacts are written to outputs/pga_lidar_deskewing/.
