Planned Execution and Resources

A product depends on more than the two coefficient tensors. Its signature, input layouts, product convention, and output projection determine which basis interactions contribute. Planning resolves that structure before evaluating coefficients.

For fixed layouts, a product has the form

\[ y_k=\sum_{i,j}c_{ijk}a_i b_j. \]

The coefficients \(c_{ijk}\) include basis permutation signs, metric factors, and the requested grade selection. Terms known to vanish need not be evaluated. The leading tensor dimensions are independent of this coefficient structure.

What a plan fixes

Every public plan_* method returns a PlannedOperation. Its inputs and output properties hold the declared tensor contracts. Planning fixes:

  • the signature and mathematical operation;
  • input and output layouts and storage forms;
  • ordinary broadcasting or explicit pairwise item axes, for products;
  • the selected implementation and its initial dtype and device.

Tensor values and leading dimension sizes remain runtime inputs. A product planned for compact vectors can process one vector, a batch, or broadcast collections without changing its algebraic contract.

import torch
from clifra import make_algebra

algebra = make_algebra(3, 0)
vectors = algebra.layout((1,))
product = algebra.plan_product(left=vectors, right=vectors)

assert product.output.layout.grades == (0, 2)
assert product(torch.ones(3), torch.ones(3)).shape == (4,)
assert product(torch.ones(5, 1, 3), torch.ones(7, 3)).shape == (5, 7, 4)

Calling a retained operation converts declared storage, validates operand boundaries, and executes its tensor program directly, independent of the algebra and planner. A plan is an nn.Module, so it can own buffers, move with .to(), and be registered as a child of another module.

The execution method is fixed, but its numerical program can contain value-dependent work. Taylor exponentiation, for example, chooses a scaling count from the generator magnitude. This is different from selecting a new operation or changing its declared output.

Direct calls, caches, and ownership

Direct calls such as algebra.geometric_product(...) use the same planning machinery and per-algebra caches. Use them for an eager expression; retain a plan when a repeated computation should have an explicit module boundary.

algebra.to(...) changes defaults for future plans and clears its planning caches. Existing plans move independently, each retaining its selected implementation. Moving one plan leaves the placement of other plans unchanged, even when they originally shared cached work. Construct a new plan when selection should be reconsidered for another dtype or device.

Private executor types, route names, and cost formulas are not plan inspection APIs. The stable result of planning is the callable operation and its contracts. Save the declarations needed to reconstruct it; private kernel state is not a portable serialization format across library versions.

What resource checks measure

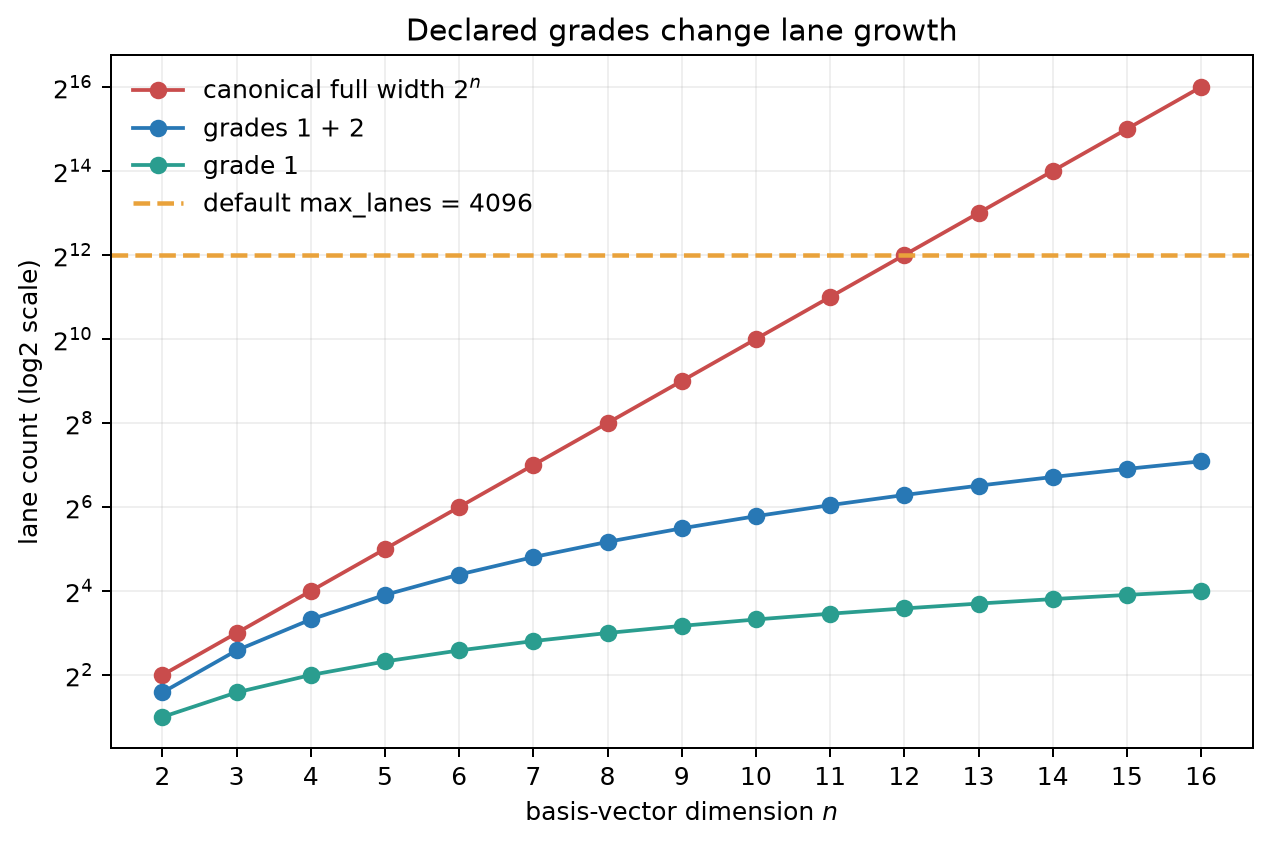

Compact storage removes coefficients absent from the layout, but an operation can still cost more than the output width. A full layout has \(2^n\) lanes; a grade-\(k\) layout has \(\binom nk\). An operation can also require many input interactions or a larger intermediate layout.

Planning checks both maximum lane width and a conservative static pair/interaction footprint before building execution buffers. The footprint includes route-owned structures and child computations that coexist, and may include a larger known fixed-shape temporary. It is not a runtime byte count.

ResourceLimits is an immutable feasibility budget supplied by the caller. The defaults warn at 2,048 lanes or 1,000,000 interactions and reject requirements above 4,096 lanes or 8,000,000 interactions. Supply another budget at construction:

from clifra import ResourceLimits

limits = ResourceLimits(max_lanes=512, max_pairs=100_000)
bounded = make_algebra(3, resource_limits=limits)
assert bounded.resource_limits is limits

The same argument is available on AlgebraContext and AlgebraConfig. The algebra owns the supplied budget for its lifetime, and placement changes preserve it. Construct another algebra to use a different budget. See Set resource limits for examples.

Providers first assess conservative resource requirements. The router compares them with the budget; only feasible built-in candidates reach performance ranking. Raising a limit permits a computation, but performance ranking remains separate. Budgets define resource feasibility; they do not alter the operation's mathematics or request an approximation.

Caller-controlled batch and item dimensions are excluded from these static counts. A legal pairwise product can still create an output proportional to \(L R\), and its backward pass may retain additional tensors. Size or chunk those dimensions in the application.

Limits reject unavailable computations; they do not request a lower-rank approximation. Narrowing the output changes the requested projection, whereas changing a registry changes the available implementations.

Private configuration and harness utilities serve kernel tests and benchmark infrastructure. They are not user-facing tuning interfaces. Public budget injection does not expose their policy or configuration machinery.

Executor extensions

An optional ExecutorRegistry supplies implementations through the public ExecutorProvider protocol. The provider receives an ExecutorRequest: operation family and name, compact contracts, dtype, and device. A None input contract denotes an ordinary tensor operand, such as a matrix.

Assessment and construction are separate. assess returns either a rejection reason or an Assessment containing conservative resource requirements and optional provider-owned preparation. Assessment must not allocate execution buffers. If selected, build receives the same request and assessment objects and returns an nn.Module.

Acceptance means implementing the declared mathematical operation, allowing ordinary numerical roundoff but no deliberate truncation. The module must honor broadcasting, device and dtype behavior, and differentiation through its tensor computation. clifra supplies compact/canonical conversions and pairwise expansion at the boundary.

A supplied registry replaces the default registry. Prepending an external provider to the default providers gives it precedence when eligible; appending one makes it a fallback. Precedence applies only to accepted providers; rejected and over-budget providers are skipped. Provider identities and behavior remain fixed while a registry is in use. There is no global registration state.

Provide a custom executor gives a complete provider example without importing private planning structures.
